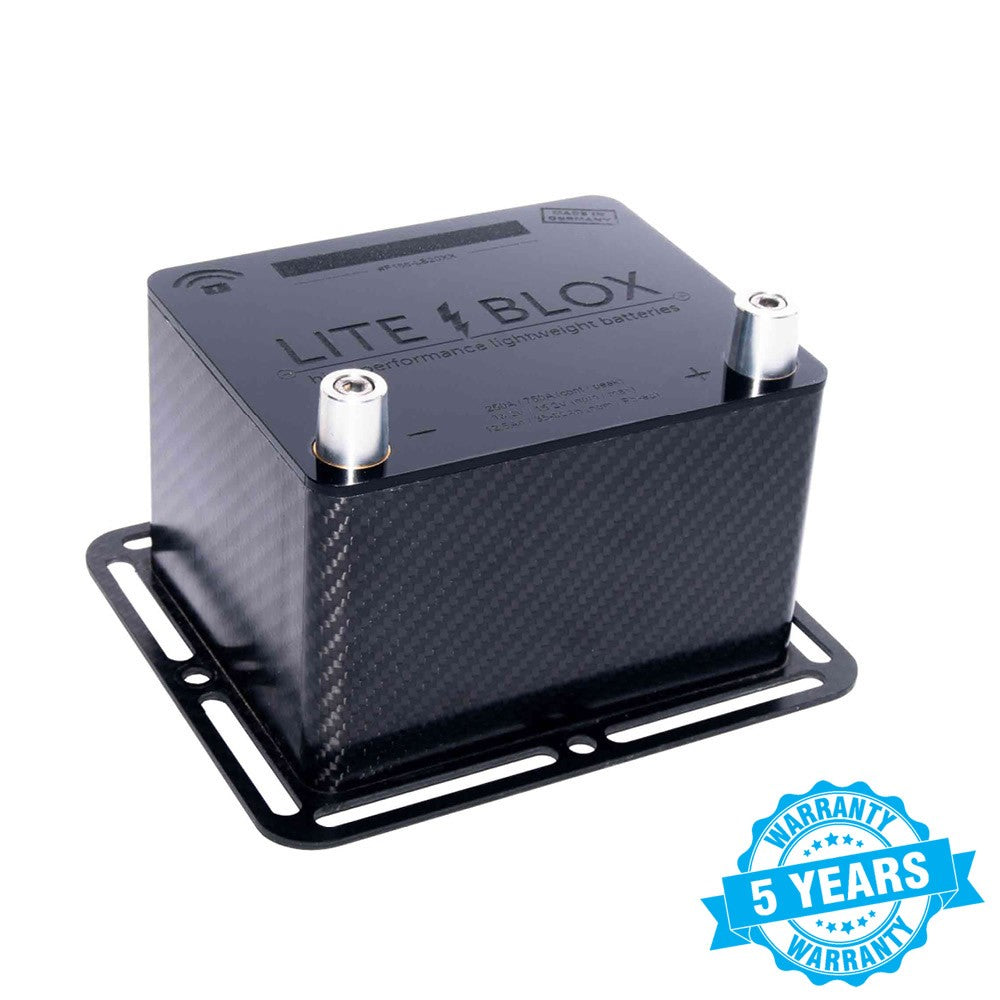

Our versatile high performance starter battery LB20XX in a thermally & mechanically decoupled Carbon Fibre housing with implemented bracket, intelligent electronics with integrated, active kill-switch – engineered and built by hand in Germany.
Features
- saves 15-20kg (33-44lbs) to a standard starter battery
- plug’n’play replacement – fit for almost any production car
- wireless interface for wireless data monitoring via Smartphone App
- maintenance-free due to intelligent BMS-System (over-/undervoltage, over-/undertemperatur, overcurrent & short ciruit)
- innovative & smart electronics for kill-switch via Smartphone App in two different programs:
1.) I.K.O.S. – Intelligent Kill-Operation-Switch:
effective disconnection of the LITE↯BLOX from the vehicle due to overload or via Smartphone (emergency or extended sitting periods), similar to the common FIA kill-off switch
2.) A.V.A.T. – Active Vehicle Anti Theft:
while all consumers are still being provided with energy, the LITE↯BLOX will instantly shut down at any theft attempt - latest premium cell technology (LithiumWerks ANR26650M1B V3)
- rapid charging (optimal für Start-Stopp)
- marginally self-drain when not in use (sitting time >200days)
- fail safe due to innvative concept and premium materials
- tested in professional motorsport & FIA approved for Formula3 F3 plus Motorsport-UK registered (11/LI/19)
- engineered & handcrafted in Germany with a 5 year extended material guarantee
Anwendung
- 4-8 cylinder engines (2500-4000ccm***)
- daily driven car use with restrictions (vehicle parking periods 2-4 weeks*)
- sportscar / tracktool / motorsport (race track circuit / 24h race / endurance / dragracing / formula F3 / NASCAR) / tuning / Car-Hifi / boats
- for the use in applications with intelligent battery management (IBS / IAC) –> battery programming mandatory!
- for all vehicles from 2019 where the car battery can not be programmend to the ECU our special IBS-adapter is mandatory
- or the use in applications with regenerative brake system use our model LB28XX only
- for vehicles of the BMW F-series (type M3 / M4), the OEM battery cable of the BMW M2 must be used (IBS 61219117877)
Technical data
- weight: 20XXg / 4,4lbs** (excl. pole terminals)
- dimensions: 149 x 123 x 100mm (l x b x h)
- voltage: 13,2V / 15,2V (nom / max)
- capacity: 12,5Ah / 35-50Ah (nom / Pb-eq)
- cranking current: 250A / 750A* (cont / peak @RT)
- temperature: -20 to +80°C
- lifespan: lifespan: 3-5x compared to the OEM battery*
- connection: OEM clamp onto the battery poles (DIN) or via ring terminal (M6)
- certificates:
- certificates: product complies with directives 2001/95/EG, 2011/65/EU, 2006/66/EG, 2008/104/EU
- delivery scope: LITE↯BLOX + aluminium pole terminals + mounting material
